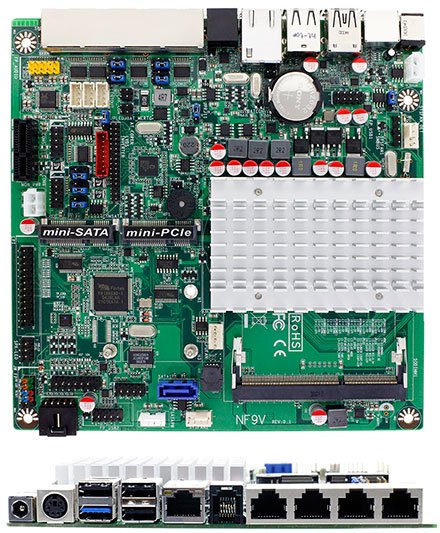

Jetway NF9V-2930 (Intel Bay Trail-M)    - Intel Celeron N2930 SoC Processor  - Embedded Class Planned Lifecycle through Q1.2019  - Built-in PenMount Touchscreen IC  - RJ11 Jack with +12V/+24V Power for Cash Drawers  - 4 * External RJ45 Serial Ports & 2 * Internal Serial Header  - 12V DC-in or Alternate Internal 2-pin Power Connector  - ECO-design for EuP/ErP   Specification:   - Processor: Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP - Memory: 1 x 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required) - Graphics: Intel HD Graphics, 313MHz - 854MHz - Audio: Realtek ALC662 2.1 Channel HD Audio with 3W Amplifier - LAN: 1 x Realtek RTL8111G Gigabit Ethernet with Enhanced Surge Protection - Storage: 1 x SATA2 3Gb/s Connector, 1 x mSATA (Full size) - Super IO: FINTEK F81866A   Back Panel Connectors:   1 12V DC-In jack 1 PS/2 Keyboard/Mouse 1 USB 3.0 3 USB 2.0 1 RJ45 LAN (10/100/1000) 1 RJ-11 port (+12V/+24V) 4 RJ45 Serial Ports (cables not included)   Onboard I/O Connectors:   1 PCI Express x1 Slot 1 Full size mSATA Slot 1 Full size mini PCI-E Slot 1 SATA2 3Gb/s Connectors 2 USB Pin Headers for up to 4 additional USB 2.0 Ports 2 Serial Port Headers (1 * RS232, 1 * RS232/422/485) 1 24-bits Dual Channel LVDS connector/Inverter 1 PenMount C8051F321 Touch IC 5-wire Resistive 1 AT/ATX power switch mode select jumper 1 Chassis Intrusion Header 1 VGA Header 1 Parallel Header 1 SMBUS(I2C) Header 1 8-bit GPIO Header 1 9-pin Audio Header 1 2-pin LAN LED Header 1 Front Panel Header 3 Speaker Header, Mic Header, Line-out Header 3 Fan Headers 1 2-pin MON_PWR Out Connector 1 2-pin +12V Alternate Power Connector (Molex 5566-2)   Market Segments Supported:    - Digital Security & Surveillance  - All-in-One (AIO)  - Panel PC  - Industrial Automation/Control  - Retail (POS/Kiosk/ATM)  - Thin Client

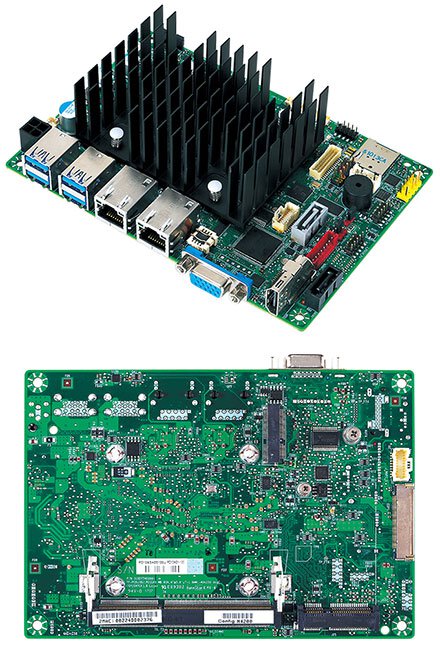

Mitac PD10AI-N4200 (Intel DN2800MT4) Half-Height (Intel Apollo Lake N4200 4x2.5Ghz CPU, 8-24VDC) [ LÜFTERLOS ]   Beschreibung:   Dieses Board wird von MITAC hergestellt, dem Auftragsproduzenten von Intel für Intel DN2800MT. Das Mainboard basiert auf Intel DN2800MT, ist aber mit der moderneren Apollo Lake Plattform ausgestattet. PD10AI ist verfügbar bis mindestens Q1/2022.   - Intel Apollo Lake N4200/N3350 quad/dual cores processor - Intel HD graphics and DriectX 12 support - Dual channel DDR3L with two connectors for MAX. 8GB memory - Triple independent display from HD-Out, DP-out, and eDP / LVDS connectivity - Features high speed Gigabit Ethernet connection - Features 2 SATA 6Gb/s - Four Hi-Speed USB3.0 ports support - Two RS232 support, optional for four extra COM ports - One PCIe connector for the future Add-in card - Two M.2 slot for storage and wireless expansion - 8 V to 24 V wide-range voltage input via back-panel DC jack or internal power connector  Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters [6.7 inches] x 170.18 millimeters [6.7 inches])   Technische Daten:   - Processor: Chipset Intel Braswell N4200, Processor with integrated graphics Memory - Support for dual channel DDR3L 1867 SO-DIMMs - Support for up to 8 GB of system memory on a single SO-DIMM (or 4 GB each by 2 SO-DIMM), 204-pin DDR3L SO-DIMM - Integrated graphics: Digital displays (HD-Out), Analog displays (VGA), Internal flat panel displays: LVDS, Embedded DisplayPort* eDP* - External graphics support via a PCI Express 2.0 x1 graphics add-in card connector - Audio : 2 + 2 Channel High Definition Audio ( HD Audio) using a Realtek* ALC283 audio codec, supporting: analog stereo line-out (back panel jack), In-chassis stereo speakers support (3 W/3 via an internal header) -  Expansion Capability: PCI Express x1 add-in card connector: 1, M.2 (2242/2260/2280) with USB2.0 and SATA III signal for SSD: 1, M.2 (2230) with PCIex1 and USB2.0 signal for wireless: 1 Peripheral Interfaces, USB 2.0 front panel ports: 2 (Header), USB 3.0 back panel connectors (blue): 4 - SATA 6.0 Gb/s:  1 - SATA 6.0 Gb/s port (multiplexed with an m.2 slot): 1 - Legacy I/O Controller that provides: Serial port header: 2, Parallel port via an onboard header (Option with MiAPI header) - 1 LAN Support 2x Intel I211-AT (10/100/1000 Mb/s) Ethernet LAN controller BIOS - BIOS resident in a Serial Peripheral Interface (SPI) Flash device - Voltage sense to detect out of range power supply voltages, Nuvoton NCT6793D based subsystem - Thermal sense to detect out of range thermal values, Nuvoton NCT6793D based subsystem - 2x 4-pin system fan header - PSU: DC connectivity via back-panel DC jack(2.5mm/ ID, 5.5mm/ OD), Internal 2 pin power connector - Operating Temperature: 0°C to +60°C - Storage Temperature: -20°C to +70°C - Certification: CE, FCC

Jetway JNF796V-Q370 (Intel Coffee Lake, 2x M.2)   Das JETWAY JNF796M-Q370 ist ein Mini-ITX-Formfaktor-Board, kompatibel mit den Intel® Core i7 / i5 / i3-, Pentium- und Celeron-Prozessoren der 8./9. Generation. Das Mainboard unterstützt zwei SO-DIMM DDR4 2400 / 2666MHz-Speicher mit bis zu 64 GB. Mit dem integrierten Intel® Gigabit-Ethernet-Controller bietet der JNF796M-Q370 zwei 10/100 / 1000Base-TX-Ethernet-Geräte für die Netzwerkübertragung. Fünf SATAIII-Schnittstellen (6 Gbit / s) und eine M.2-M-Schnittstelle 2242/2280 (SATA / PCIex4) für NVMe-Speichergeräte. Ein M.2 E-Key 2230 (PCIex1 / USB2.0) mit CNVi unterstützung, vier USB3.1 Gen.2-Ports, sechs USB3.1 Gen.1-Ports, zwei USB2.0-Ports und sechs COM-Ports bieten eine vielseitige Erweiterung. Der PCIex16-Steckplatz kann Jetway-Riser-Karten für unterschiedliche Erweiterungen aufnehmen. Das JNF796M-Q370 bietet einen HDMI1.4-Anschluss, einen DP1.4-Anschluss, einen VGA-Anschluss und einen 24-Bit-Dual-CH-LVDS, der 3 unabhängige Anzeigen unterstützen kann. Aufgrund der oben genannten Funktionen eignet sich JNF796M-Q370 für Edge-Computing-, Digital Signage-, Industrie-PCs, Fabrikautomations-, öffentliche Sektor-, digitale Sicherheits- und Überwachungsanwendungen.   - Intel® 8th/9th LGA1151 Socket Processor (Max. 65W TDP) - 2* DDR4 2400/2666MHz SO-DIMM up to 64GB - 2* 10/100/1000 Base-TX Ethernet Ports - 1* HDMI, 1* DP, 1 * VGA, 1* 24-bits Dual CH LVDS support Triple Displays - 6* COM (COM1/2 support RS232/422/485), 4* USB3.1 Gen.2, 6 * USB3.1 Gen.1, 2 * USB2.0 - 1* PCIe x16 slot, 1* M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe, 1* M.2 E-key 2230 (PCIex1/USB2.0) support CNVi - 5* SATAIII (6Gb/s) support RAID 0, 1, 5, 10 - Support onboard TPM 2.0 (option)      Model  Model – JNF796M-Q370   Form Factor  Form Factor – Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)   Processor System  Processor/CPU – Intel® 8th LGA 1151 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDP) – Intel Q370 Express chipset – AMI 128Mb Flash ROM BIOS   Memory  Memory – 2* Dual CH DDR4 2400/2666MHz SDRAM SO-DIMM up to 64GB   Expansion Slot  Expansion – 1* M.2 E-key 2230 (PCIex1/USB2.0) support CNVi – 1* PCIex16 slot   Storage  Storage – 5* SATAIII support RAID 0, 1, 5, 10 – 1* M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe   Graphics  Graphics – Intel® HD Graphics, shared memory – 1* VGA (Max Resolution: 1920×1200@60Hz) – 1* LVDS (Max Resolution: 1920×1200@60Hz) – 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz) – 1* DP (Max Resolution: 4096×2304@60Hz) – Support Triple Displays   Ethernet  Ethernet – 1 * Intel i219LM GbE – 1 * Intel i211AT GbE   Audio  Audio – 6 channel HD audio: Realtek ALC662VD   I/O Port  Rear I/O – 1* VGA – 1* HDMI – 1* DP – 2* RJ45 Ethernet – 4* USB3.1 (Gen. 2) – 2* USB3.1 (Gen. 1) – Line-in, Line-out, MIC – 2* COM (COM 1/2 support RS232/422/485)  Internal I/O – 4* USB3.1 (Gen. 1) – 2* USB 2.0 – 1* PS/2 – 1* LVDS / Inverter – 4* COM – 5* SATAIII – 1* M.2 E-key 2230 (PCIex1/USB2.0) support CNVi – 1* M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe – 1* GPIO (8 bit) – 1* Chassis intrusion – 1* Audio Header – 1* SMBUS – 1* AT mode – Support onboard TPM2.0 (option)   Watchdog Timer  Watchdog Timer – From Super I/O to drag RESETCON# – 256 segments (10sec ~ 255min)   Power  Power ATX PWR (4+24 pin), AT/ATX Supported – AT : Directly PWR on as Power input ready – ATX: Press Button to PWR on after Power input ready   Compliance  Certifications – CE, FCC, LVD, RoHS, REACH   Environment  Temperature – Operating: 0°C ~ 60°C – Storage: -20°C ~ 85°C – Humidity: 10% ~ 90% RH @40°C (non-condensing)
